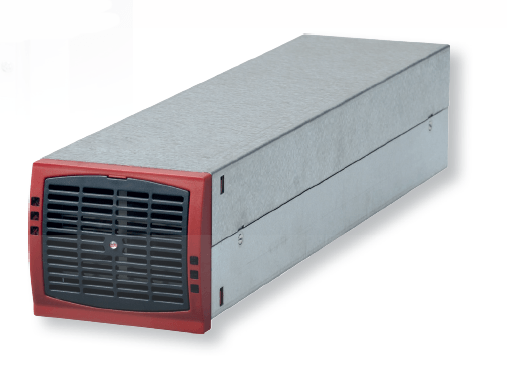

2500VA BRAVO Modular Telecoms AC Inverters

Lead Time MOQ
4 weeks 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents
  • The BRAVO 2500VA Modular Inverter is ideal for mid to large IT and Telecoms rack protection.


    • Wide AC input 150VAC-265Vac
    • No need for an external static Switch (all STS functions included in each module)
    • 96% efficiency in EPC mode (AC-AC double conversion)
    • No transfer time from AC to DC sources
    • Unity power factor on AC input

    Typical Applications

    • Telecoms and IT rack servers and data communications cabinets needing battery backup
    • Output Power Capacity: 5kVA up to 225kVA (in three cabinets)

    Specific Technical Characteristics

    • Nominal Output Power/Current: Nx2500VA / Nx10.9A (n=number of modules)
    • Nominal DC Input Current Per Module (at 40Vdc): Nx56A
    • Max DC Input Current Per Module (15s at 40Vdc: Nx84A
    • Efficiency in EPC Mode (AC-AC): 96%
    • Efficiency DC/AC On Battery: 91%
    • AC Input Range: 150-265Vac
    • Operating Temperature: -20 to +50degreesC (de-rating up to 65degreesC)
  • SKU Bravo-48-230-2.5kVA
    Power 2.5kVA/2kW
    Input Amps 46A
    Input Voltage 48Vdc, 40-60Vdc
    Output Voltage 220/230/240Vac 50/60Hz
    Output Connection modular plug-in
    Dimensions (WxDxH) 103x436x132mm (2U)
    Nett Weight 4.3Kg
    Delivery Time Ex stock
    Warranty 2 year warranty
