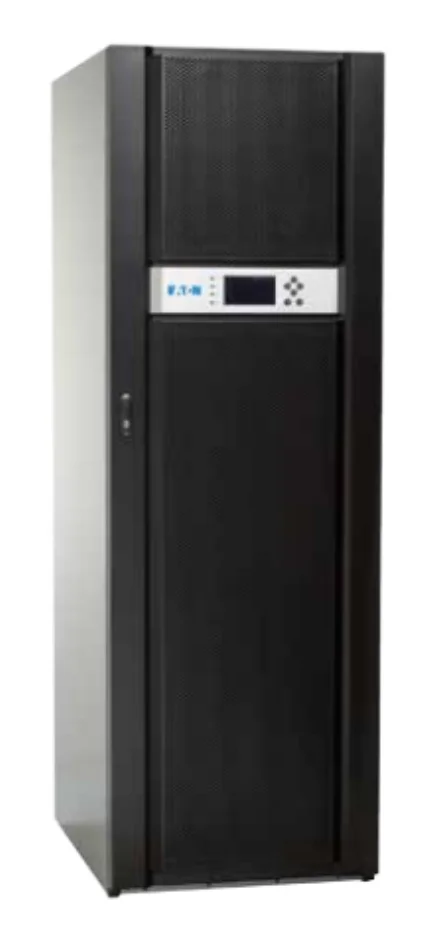

The Eaton 93E 120kVA UPS system is a three phase input and three phase output transformerless design and provides on-line double-conversion power protection with an automatic bypass, internal maintenance bypass and power factor correction. The UPS has a compact footprint and is designed for in-row integration with server racks in a datacentre environment. Up to four UPS can be paralleled using Eaton HotSync technology with true load sharing. The 93E UPS can achieve up to 98.5% efficiency in Energy Saver System (ESS) Eco mode. An external battery cabinet provides the battery runtime and can be configured from several minutes upwards.
Typical applications: small to medium sized datacentres, financial services, building management systems, telecoms, industrial automation, healthcare and local government comms rooms.
Runtime Table
The 93E 120kVA UPS has no internal battery and requires a matching battery extension pack or an open or cladded battery stand.
| Runtime | Qty | BEP SKU | WxDxH | Weight |
|---|---|---|---|---|
| 11m | 1 | 93E-BAT-120-10 | 1020×950×2000mm | 1595Kg |
| 15m | 1 | 93E-BAT-120-15 | 1020×875×2000mm | 2560Kg |
| 30m | 1 | 93E-BAT-120-30 | 1760×950×2000mm | 3803Kg |
Eaton 93E 120kVA Uninterruptible Power Supplies
- Power Protection: sags, surges, brownouts, lightning strikes, storms and mains power failures.
- Eco Mode: high efficiency with surge suppression and 4ms transfer time to full on-line double-conversion mode.
- Real Compatibility: active power correction with 0.99 input power factor, less than 5% THDi and 0.9 output factor.
- HotSync Technology: to allow up to four UPS modules to be paralleled to increase capacity or availability.
- Battery Management: with Eaton Advanced Battery Management (ABM) technology using a three-stage charging technique to extend battery life by 50%, hot swappable batteries, periodic battery testing and extended runtime options using up to twelve extra battery modules.
- Remote Communications: RS232 and USB port with an expansion slot for an optional communications card (SNMP/WEB/Relay Card). Connects to the Eaton Intelligent Power Software suite for management in virtualised environments.
- Options: isolation transformer, long-life batteries, external battery cabinets, integrated manual bypass and external maintenance bypass switch.
