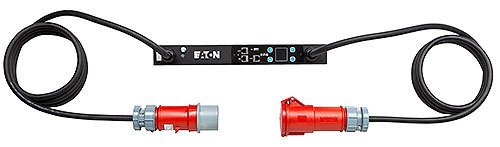

Eaton In-Line Metered IEC G3 PDU 1xIEC 32A 3P connector

Lead Time MOQ
In Stock 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents
  • Eaton ePDU G3 In-Line Metered with with 1xIEC309 32A 3P input and 1xIEC309 32A 3P output upgrade an existing basic installation to include, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

    Range Features

    • ±1% IEC class 1 billing grade accuracy
    • Colour-coded outlet and breaker sections
    • Hot-swap eNMC meter with advanced LCD
    • Low-profile form factor
    • High operating temperatures
    • Daisy-chain network
    • Multiple install options
    • EnergyWise ready
    • Options: Eaton Intelligent Power Manager software (free download), Environmental monitoring (Temperature and Humidity Probe)
  • SKU EILB15
    Input Connection IEC 32A 3P
    Input Voltage 380-415Vac, 50Hz
    Installation 0U 19" Horizontal mounting
    Output Connection 1xIEC 32A 3P
    Output Voltage 380-415Vac, 50Hz
    Dimensions (WxDxH) 443x53x52mm
    Nett Weight 5Kg
    Delivery Time Ex Stock
    Warranty 2 year warranty
