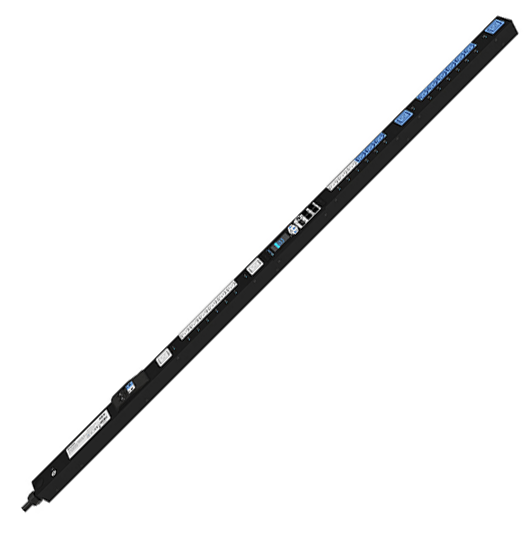

EN6105 Outlet Metered Outlet Switched PDUs 32A 1ph with 18xC13 and 4xC19 outlets. The EN6000 PDU provides a comprehensive management solution with individual outlet power and energy metering at the phase, circuit breaker and outlet level with environmental and access monitoring, to the standard features of the EN2000 series PDU. The EN6000 PDU also features real-time metering and network monitoring of the connected loads to help with capacity planning, load balancing and energy usage optimisation.
The EN6000 features outlet metered and outlet level switching, to allow for sequential outlet power-up to protect against inrush current overloads and allow datacentre managers to specify and define load hardware boot-up order and timing. The remote ON/Off outlet control allows authorised users to power-cycle hardware and control rack-level power access by turning off unused outlets.
The PDU incorporates billing-grade watt-hour metering to provide data on accurate energy usage for billing and PUE level 3 and efficiency calculations. The monitoring is real time for every input power phase and each circuit breaker within the rack PDU itself and advance alarm notification to warn of potential power issues and provide the opportunity to balance loads between phase and circuit breakers to improve reliability and power efficiency.
Enlogic PDUs have a low-profile design and ultra low-profile circuit breakers for space-saving within the rack enclosure. Up to 6 external sensor problems can be attached to each PDU for remote and alarm monitoring. Enterprise-grade network connectivity allows for effective management via HTTP, HTTPS, SNMP or Telnet integration with LDAP/S and Active Directory allows easy integration into your existing directory service. Other features include colour coded outlets and circuit breakers, standard locking IEC outlets and cords, high visibility oLED display and a hot-swappable network management module.
See our range of PDU accessories for additional sensors (access/security, humidity/temperature, smoke and water/fluid), beacons, communications cables, plug-in interfaces and locking power cords.
PDU Level
- PDU Metered: yes.
- Energy Meter (kWh): yes.
- PDU Level Billing Grade Metering: yes.
Outlet Level
- Outlet Metered: yes.
- Outlet level Billing Grade Metering: yes.
- Outlet Level Switching: yes.
External Sensor Compatibility
- Maximum Number of Sensors: 6.
- Temperature Sensor Compatible: yes.
- Temp + Humidity Sensor Compatible: yes.
- 3T + 1H Sensor Compatible: yes.
- Dry Contact Sensor Compatible: yes.
- Fluid Leak Sensor Compatible: yes.
Network Intelligence Module
- Field Replaceable Network Intelligence Module: yes.
- Hot Swappable: yes.
Design Features
- Coluor Coded Outlets: yes.
- Locking IEC Outlets: yes.
- Rewireable Input Cord: no.
- Toolless Mounting Systems: yes.
- Daisy Chain Capable: yes.
- Circuit Breaker Status Monitoring: yes.
Environmental Characteristics
- Temperature Range: -5 to 60C.
- Humidity Range: 5-95% RH, non-condensing.
- Maximum Elevation: 0-3000m.
- Storage Temperature: -25 to 65C.
- Storage Humidity: 5-95% RH non-condensing.
- Storage Maximum Elevation: 0-15000m.
