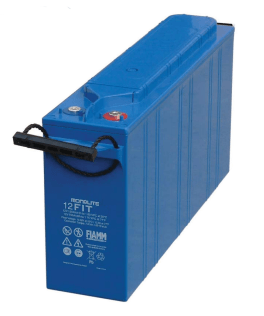

Fiamm FIT 101Ah 12Vdc valve regulated lead acid (VRLA) maintenance free telecoms batteries with front terminals and a 10 year design life.
Applications and Features
- Designed for high energy density front terminal telecom installations and ideal for telecom BTS – wireless applications, outdoor wire line cabinets, broadband, microwave repeater and fiber optic regeneration sites and use in areas with stable on-grid power supply
- Suitable for discharge 30 min up to 10 hours
- Front terminal design for reduced headspace, higher energy density and compact battery layout
- Front terminal design reduces installation time and facilitates maintenance
- 19 or 23inch and ETSI power racks / cabinets
- AGM gas recombination technology
- Minimal gassing and fit for remote venting
- Non-spillable
- Maintenance free without topping-up
- Non-hazardous for air/sea/rail/road transportation
- 100% Recyclable
Technical Features
- Pasted plates and grids of high quality lead-tin-calcium alloy
- Electrolyte fully absorbed in glass mat AGM separators with extremely high porosity
- ABS IEC 707 FV0 and UL 94 V0 (LOI greater than 28%) flame retardant plastics
- Container and lid designed for unsurpassed mechanical strength made of thick walled plastics
- Thermally welded case-to-cover sealing avoids leakage
- Threaded terminal posts with brass inserts guarantee highest conductivity, maximum torque retention and easy installation
- High integrity post seal design to prevent electrolyte leakage over a wide temperature range
- Flame arrestors prevent sparks or flames from entering the battery
- Heavy-duty internal straps and through-the-partition cell connections minimize internal resistance
- Front terminals for reduced headspace, higher energy density and compact battery layout
- Fully insulated removable terminal covers with probe hole for safe and easy voltage measurement
- Robust connectors for use also in high rate application
- Design allows connections to the top, the front or the side
- Lids have space for end-battery connection cables
- All models have removable rope handles
- Cells equipped with one-way safety valves to allow excess gas to escape when overcharging
- Remote venting system available for applications which require limited gassing to be vented externally
- Self-discharge < 2% per month at 20degC allows
- 6 months shelf life
Electrical Characteristics
- Float voltage charge for standby use at 20degC: 13.62 V/bloc (2.27 V/cell)
- Boost charge: 14.4 V/bloc (2.40 V/cell)
- Float voltage temperature compensation: -15 mV/degC/bloc
Standards
- IEC 60896 Part 21 – VRLA methods of testing
- IEC 60896 Part 22 – VRLA requirements
- BS 6290 Part 4 – specificaitons for VRLA classification
- UL Recognised
- Eurobat Long Life 12 years life
