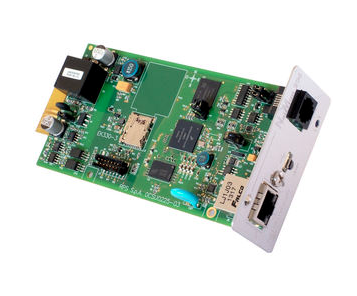

The NetMan 204 SNMP Adapter is a slot-in card with a network agent to allow the Riello uninterruptible power supplies to be managed across a Local Area Network (LAN) using TCP /IP , HTTP HTTPS, SSH, SNMPv1 and SNMPv3. Netman 204 also provides communication over Ethernet networks using Modbus/TCP and BACnet/IP protocols.
Netman 204 Features
- 32bit RISC processor
- Compatible with 10/100 Mbps Ethernet and IP v4/6 networks
- Compatible with PowerShield3 and TeleNetGuard
- SNMP v1 and v3 with RFC1628 for PowerNetGuard and NMS connection
- SNMP v1 with RFC3433 for the management of environmental sensors
- HTTP and HTTPS for UPS control via web browser
- SMTP for alarm notifications and UPS status updates via email
- Modbus/TCP
- BACnet/IP
- Maximum expandability
- WiFi ready, using a customized dongle can communicate via WiFi network
- Events log and data management
- Wake-on-LAN management for starting computers via TCP /IP network
- Other standards: DHCP, DNS, FTP, NTP, ICMP and IGMP
- Management of environmental sensors
- Configurable via SSH sessions and HTTP
- Firmware upgradeable via FTP and HTTP
WiFi Dongle Option
The WiFi dongle allows a NetMan204 card to communicate with a WiFi network using the communication protocols (TCP/IP, HTTP and SNMP) or industrial protocols MODBUS, TCP or BACNET. The minimum requirements are:
- NetMan 204 Operating System version 15.2
- NetMan 204 Firmware version 1.04
