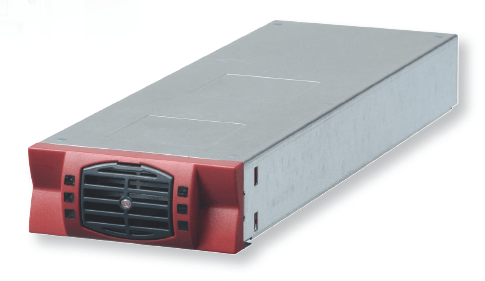

The NOVA 750VA Modular Inverter is ideal for ICT rack integration providing 240Vac and 48Vdc inputs which are converted to provide a reliable and stabilised sinwave output from either source at 230Vac.
Features
- Wide AC input voltage range: 150VAC – 265Vac
- No need of external static switch – all STS functions included in each module
- High power density 93% efficiency in EPC mode (AC-AC double conversion)
- No transfer time between AC and DC sources
- Unity Power Factor on AC input
Typical Applications
- Lower power IT and telecoms racks with limited space available
- Applications requiring a long back-up runtime
- Capacity: typically 1-4.5kVA and can be extended to 24.75kVA in one cabinet
Specific Technical Characteristics
- AC Output Breaker Included: 10A for Pack 20, 30 / 20A for Pack 25, 35, 40, 50, 60
- DC Input Current Max Per Module: Nx17A
- Efficiency in EPC mode (AC-AC): 93%
- Efficiency On Battery (DC/AC): 90%
- AC Input Range/Power Factor: 150VAC to 265VAC >0.99
- Operating Temperature: -20 to +50degreesC (de-rating up to 65degreesC)
