MDU Outlet Metered Outlet Switched PDUs 16A 1ph

Lead Time MOQ
In Stock 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents

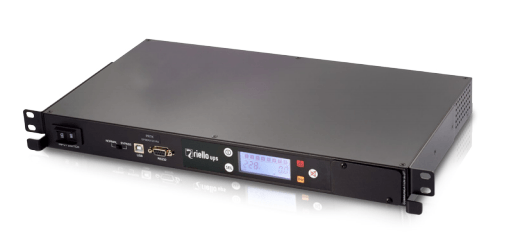

  • The Riello UPS Multi Socket MDU is a rack mount PDU with 8 output sockets and advanced load monitoring with local or remote ON/OFF individual socket outlet switching.

    The MDU is ideal for datacentre and IT managers who want to effectively monitor and manage their rack environments. The front panel LCD provides the status of each socket, input voltage, current and any alarm codes. Eight icons represent each of the eight socket outlets. If the icon is on, the socket is powered, blinking and the outlet if overloaded and off indicates no power is being delivered by that socket. The Riello Multi Socket is also compatible with the NetMan 204 SNMP adapter for network interfacing and MultiCom 301/302.


    • Input current: up to 16A
    • Maximum output current: 4A for a single socket
    • Outlets: 8xIEC-320 C13 (10A)
    • Communications: DB9 with RS232 and USB ports, slot for communications interface
    • Colour: dark grey RAL 5004
    • Protection: Overcurrent – overvoltage – undervoltage – protection against energy back-feed
    • IP Rating: IP20
    Input Connection 16A 1ph
    Input Voltage 184-276Vac, 50/60Hz
    Installation 1U, rack mounting
    Output Connection 8xIEC320
    Output Voltage 220-240Vac, 50Hz
    Dimensions (WxDxH) 483x250x44mm (1U)
    Nett Weight 5kg
    Delivery Time Ex Stock
    Warranty 3 year warranty
