ServerTech Basic PDU 24xC13 and 6xC19 sockets

Lead Time MOQ
In Stock 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents

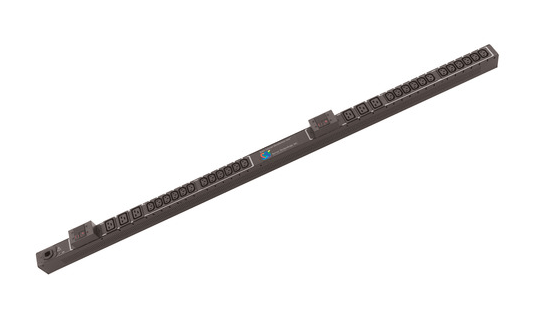

  • ServerTech Basic PDU with 24xC13 and 6xC19 sockets for vertical installation in a server cabinet.

    Additional Features

    • Button Mounting: the PDU is compatible with button and keyhole style mounting for cabinets.
    • Branch Circuit Protection: the PDU meets the UL 60950-1 requirement for Branch Circuit Protections using UL-489 rated circuit breakers.
  • SKU CB-30VEKD01D8
    Input Connection 32A 1xIEC Blue 2P+G Plug, 3m Bottom/Front Cord
    Input Voltage 230Vac 50/60Hz
    Installation Vertical
    Output Connection 24xIEC60320/C13 + 6xIEC60320/C19
    Output Voltage 230Vac 50/60Hz
    Dimensions (WxDxH) 44x57x373mm
    Nett Weight 5Kg
    Delivery Time 5 working days
    Warranty 2 year warranty
