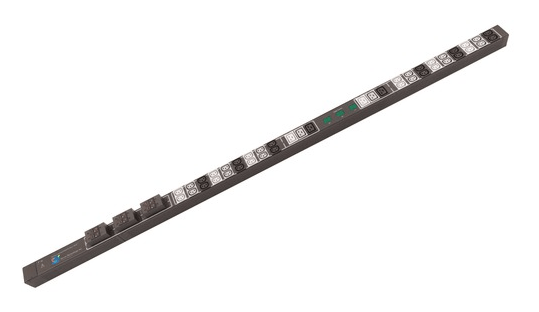

ServerTech Metered PDU 36xC13 and 6xC19 sockets

Lead Time MOQ
In Stock 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents
  • ServerTech Metered PDU with 36xC13 and 6xC19 sockets for vertical installation in a server cabinet and a local LED input current meter to monitor power usage and allow network engineers to optimise load profiles within a server rack and datacentre environment. The LED shows the true RMS power reading in Amps.

    Additional Features

    • Input Current Monitoring: the PDU provides Digital True RMS current monitoring to prevent overloads in high-density computing facilities. The LED digital display built into the PDU enclosure can show the input current per phase.
    • Button Mounting: the PDU is compatible with button and keyhole style mounting for cabinets.
    • Branch Circuit Protection: the PDU meets the UL 60950-1 requirement for Branch Circuit Protections using UL-489 rated circuit breakers.
  • SKU C42VY-4PAF21C4
    Input Connection 32A 1xIEC Red 6Hr 3P+N+G Plug, 3m Bottom/Front Entry
    Input Voltage 3-phase Wye, 230/400Vac 50/60Hz
    Installation Vertical
    Output Connection 36xIEC60320/C13 + 6xIEC60320/C19
    Output Voltage 3-phase Wye, 230/400Vac 50/60Hz
    Dimensions (WxDxH) 56x56x1753mm
    Nett Weight 5Kg
    Delivery Time 5 working days
    Warranty 2 year warranty
