ServerTech 48Vdc Switched PDU 2x100A Inputs with 16x10A Outputs

Lead Time MOQ
In Stock 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents

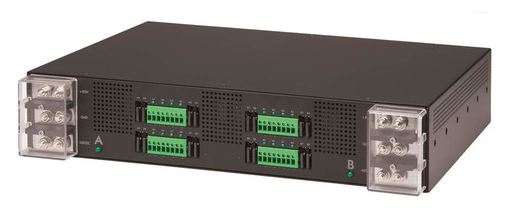

  • ServerTech 48Vdc Switched 2×100A Inputs with 16×10A Outputs from the Intelligent Sentry 48Vdc family of power distribution and network accessible power reboot hardware for telecoms, carrier equipment and backbone IT routers.

    Sentry 48Vdc PDU Features

    • Reduced field service visits
    • Improved problem/solution response time
    • Improved network availability
    • Improved facility security
    • Eliminate the need for a separate power distribution panel
    • Use RS-232 and/or TCP/IP to monitor the status of key measurement values. Receive SNMP or email alerts as well as Syslog when a measurement value is out of a predefined threshold
  • SKU 4805-XLS-16B
    Input Connection Terminals
    Input Voltage 2x48Vdc (-40 to -60) Input Terminal Blocks (+/- & G), 100A each, 200A total
    Installation Horizontal
    Output Connection Terminals
    Output Voltage Low Current Outputs: 16x10A max outlets protected with GMT fuses 0.75, 1.0, 1.5, 2, 3, 4, 5, 7.5 and 10Amp
    Dimensions (WxDxH) 432x89x406mm
    Nett Weight 5Kg
    Delivery Time 5 working days
    Warranty 2 year warranty
