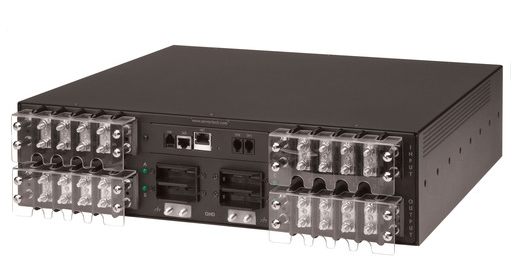

ServerTech 48Vdc Switched PDU 4x70A Inputs with 4x70A Outputs

Lead Time MOQ
In Stock 1

See documents for individual model specification sheets

  • Description
  • Specifications
  • Documents
  • ServerTech 48Vdc Switched 4×70A Inputs with 4×70A Outputs from the Intelligent Sentry 48Vdc family of power distribution and network accessible power reboot hardware for telecoms, carrier equipment and backbone IT routers.

    Sentry 48Vdc PDU Features

    • Reduced field service visits
    • Improved problem/solution response time
    • Improved network availability
    • Improved facility security
    • Eliminate the need for a separate power distribution panel
    • Use RS-232 and/or TCP/IP to monitor the status of key measurement values. Receive SNMP or email alerts as well as Syslog when a measurement value is out of a predefined threshold
  • SKU 48DCWB-04-4X070-DONB
    Input Connection Terminals
    Input Voltage 4x48Vdc (-40 to -60) Input Terminal Blocks (+/- & G), 70A each, 280A total
    Installation Horizontal
    Output Connection Terminals
    Output Voltage High Current Outputs: 4x70A max outlets protected with TPC fuses (75A max) 10, 15, 20, 25, 30, 40, 50, 60 and 75Amp
    Dimensions (WxDxH) 432x112x407mm
    Nett Weight 5Kg
    Delivery Time 5 working days
    Warranty 2 year warranty
